300A portable diesel generator welder 2 cylinder air cooled engine
Specifications:
| Model | 1200EW |
| Frequency | Hz | 50 60 |
| Rated power | KVA(KW) | 3 3 |
| Voltage | V | 230 240 |
| Electricity Amp | A | 8 9.6 |
| Phase/Factor | | 3/0.8 |
| Speed | | 3000 3600 |
| Welding dc current adjusting range | A | 0-300 |
| direct current welding voltage | V | 25-70V |
| Welding load factor | | 60% |
| Welding rectifier way | | · IGBT, 3 phase rectifier bridge |
| Pole | | 2 |
| Controler model | | Normal/Auto |
| Output type | Electric output | | 3 Phase socket |
| | Welding output | | binding post |
| exciting type | | AVR Self-excitation voltage regulator |
| insulation grade | | H |
| Dimension:L*W*H | mm | 850x780x820 |
| Net weight | kg | 175 |
| Type | | OPEN TYPE |
| Engine model | | R2V840-V2 |
| Engine type | | 2 cylinder,V type,4 stroke,Tur |
| Cylinder NO.-Bore X stroke | mm | 2--86x72 |
| Displacement | ml | 840 |
| Rated power | KW | 11.76 12 |
| Compression ratio | | 19:01 |
| Rated speed | r/min | 3000 3600 |
| Sparking model | | · pressure combustion |
| Cooling type | | Air cooling |
| Lubricating system | | Pressure and spatter composite |
| Start-up type | | Electric start |
| Fuel type | | Fuel 0#,-10#,-35# |
| Lubricating oil type | | L-ECD 10W/30 15W/40 |
| Cooling water capacity | L | - |
| Lubricating oil capacity | L | 2.7 |
| Starter capacity | V-KW | 12V-1.4KW |
| Charging generator capacity | V-A | 14V-15A |
| Battery capacity | V-AH | 12V-36AH |
| Fuel consumption rate | g/kw.h | ≤298 |
| Fuel tank capacity | L | 25 |
| Generator running hours | h | 8 |
Description:
1. 300A welder generator diesel power
2. Generator power 3KW/3KW
3. Dimension 1120x750x915mm
4. Net Weight 260KGS
5. Quantity for 20 foot container 26 sets
Applications:
1. Factory , mining , rail
2. Outside working where need welder
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. Short delivery time
4. Stable quality warranty
5. Good air input and output design

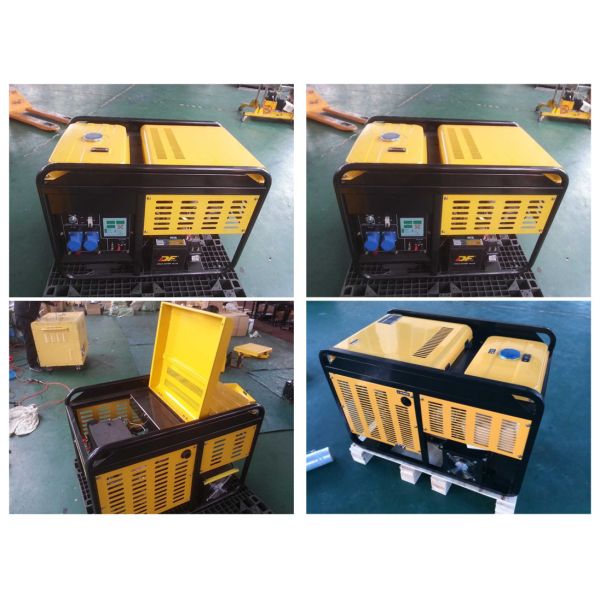

Welder generator 300A photos:
